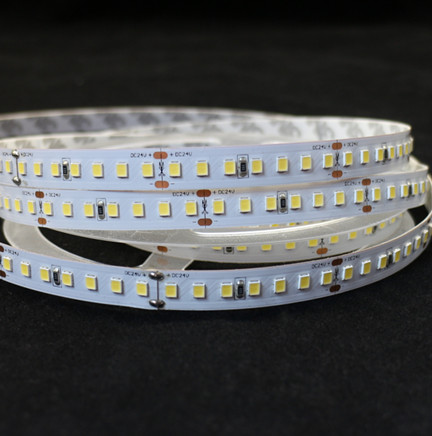

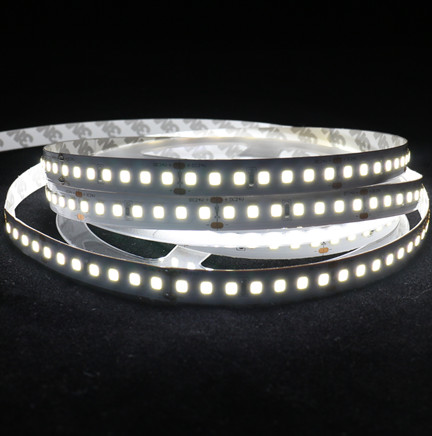

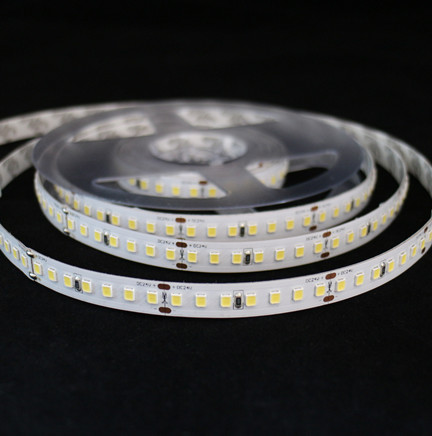

Product Name : 154-SMD2835/m 140lm/W Strip

Part No : CK-S6N4V24

Warranty : 3 years

Certification: ETL, CE

Order Immediately
  • Product parameters
  • Features
  • Data download

    Part NO.

    CK-S6N4V24

    LED Type

    SMD2835

    Lumen Output

    2300lm

    LED Quantity /M

    154pcs

    Working voltage

    DC 24V

    Wattage /M

    15.8W

    Standard Length

    5m

    Width

    10mm

    Wire length

    200mm

    Beam angle

    120 °

    Color Available

    3000K/4000K/6000K/10000K

    Working temperature

    -20~40 °C

    Storage temperature

    -25~60 °C

    IP rank

    IP20/IP54/IP65/IP67

    Warranty

    3 years

    • Using SMD2835, Epistar chip
    • 10mm wide, 2OZ cooper foil pcb
    • High lumen output, up to 140lm/W
    • OEM ODM available
    • IP rank can be IP20, IP54, IP65, IP67
